UniStream® Modular 10.4" - Programmable Controller (PLC+HMI)
MAIN APPLICATIONS:
- Grow control
- Environmental control
- HVAC control
- Temperature control
- Humidity control
- Light system control
- Odor control
- Water Irrigation control
- PH & Nutrition Irrigation control
- Super critical CO2
- Close loop extraction
- Hydrocarbon (Propane / Butane)
- Ampoules Filling
- Packaging Sorting control
- Weight automation
- Bagging automation
Powerful Award-winning Programmable Logic Controllers
MAIN FEATURES
Expand up to 2048 I/Os, Remote access & Web Server, Alarms via Email & SMS, Video & Camera integration, Ethernet/IP , MQTT for Cloud communication, variety of communication interfaces & protocols, Trends & data logging, Recipe management, FTP, and more.
UniStream® Modular 10.4"
HIGH-IMPACT BENEFITS FOR CANNABIS PRODUCERS
- Auto-tune PID, up to 64 independent loops
- Recipes & data logging via data tables & sampling
- MicroSD card – log, backup, clone & more
- Function Blocks & Structs
- Trends
- Highly quality touch screen
- Multi-language display
- Built-in Alarm Screens
- Media support: Video, Audio and PDF viewer
- Multi-level password protection – easy and fast
- CANbus
- Ethernet TCP/IP
- RS485
- USB host
- Mini USB for programming
- Add-on port: Up to 8 RS232 (Using UAC-02RS2)
- Add-on port: Up to 4 RS232 + 4 RS485 (Using UAC-02RSC)
-
Protocols:
- MQTT Client
- EtherNet/IP
- MODBUS: Serial & TCP/IP
- CANopen
- UniCAN
- CANlayer2
- SNMP
- BACnet
- KNX and M-Bus via gateway
- Message Composer for 3rd party protocols
- General Features: SQL Client, Web Server, FTP server & client, E-mail & SMS, Remote access via VNC, 3G Modem support
- Expand up to 2048 I/Os
- Expand remotely: via UniStream Remote I/O
- I/O options include digital, analog, high-speed, temperature & weight measurement.
UniLogic®- UniStream Programming Software
Eliminates the complicated operations associated with automation. Ultimate All-in-One programming environment for: PLC, HMI, I/O and VFDs. Easy to use - one environment – major time saver.
- Powerful single programming environment
- Easy to use, intuitive, and fast
- Code Ladder
- Design beautiful HMI screens and Web pages
- Configure hardware
- Set up and implement communications
- Set up and implement communications
- Build-it-Once, create & reuse Ladder functions, screens, webpages and more
- Configure & Operate VFDs
Product Details
| UniStream® 10.4″ | |
|---|---|
| I/O Options | |
| Number of I/Os per CPU (onboard, local and remote) | Up to 2,048 |

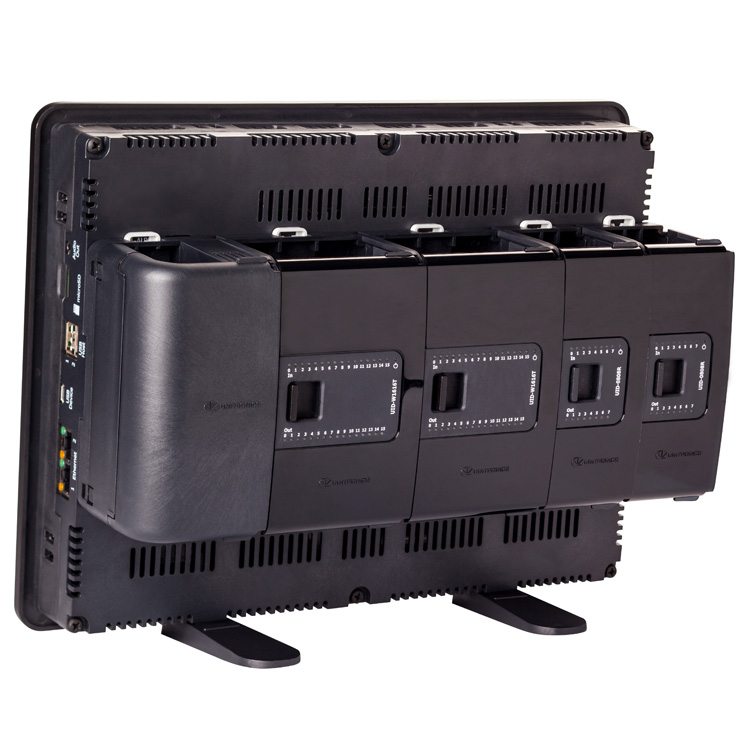

| Onboard Uni-I/O™ or Uni-COM™ Modules (all-in-one configuration) | Add up to 5 slim or 3 wide modules 1 |
| Local Uni-I/O™ Modules | Use Local Expansion Adapters to add up to 80 slim modules or 50 wide modules 1 |
| Remote I/O Expansion | Use EX-RC1 adapters to further extend the number of I/Os 4 |
| Bit Operation | 0.13 µs |
| Ladder Memory | 1 MB |
| External Memory | microSD and USB Flash drive (up to 32GB) |
| Video | Show MPEG-4 videos on the HMI screen |
| Audio | Play MP3 audio files using internal speaker or use the audio-out jack for external speakers |
| Power Supply | 12/24VDC |
| Backup Battery | CR2032, Back-up RTC values, system data and retained tags |
| Communication | |

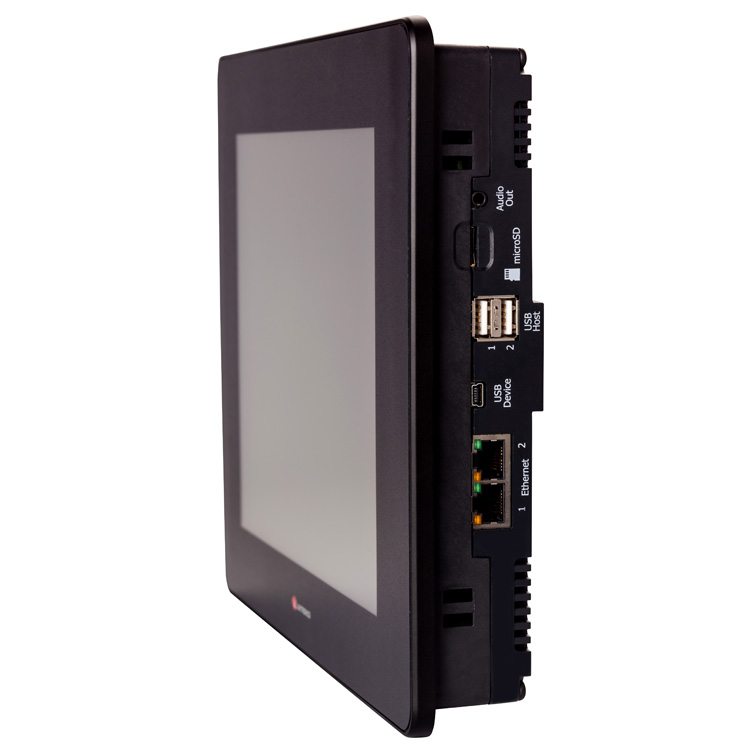

| Ports | 2 Ethernet • 1 RS485 • 1 CANbus •2 USB host ports • 1 USB device port for programming |
| Protocols | MODBUS, EtherNet/ IPTM, CANopen, SNMP, FTP, BACnet2, RTSP, VNC, UniCAN, GSM (SMS, GPRS), KNX, Message Composer for 3rd party protocols |
| HMI Panel | |

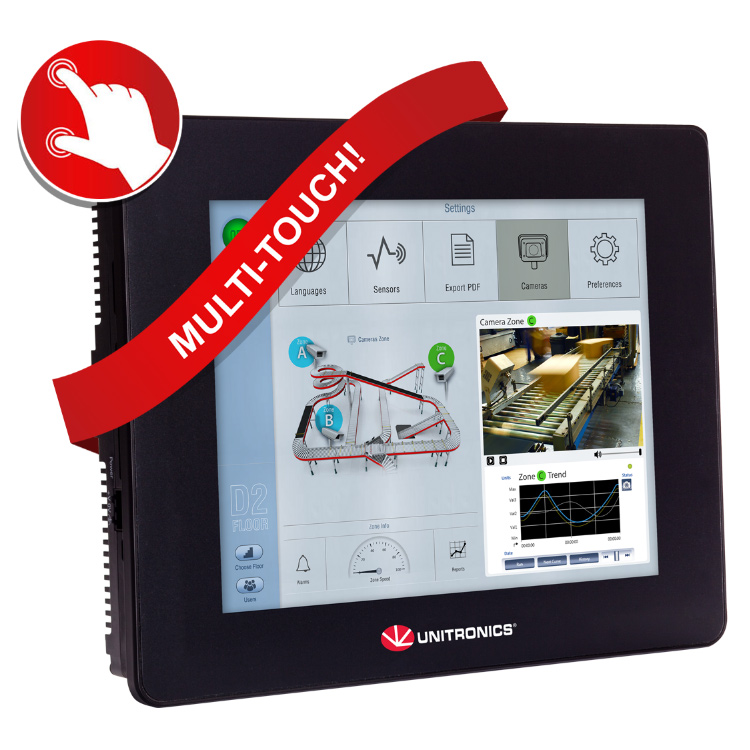

| Type | USP-104-M10: Capacitive, Multi-Touch, 5 fingers HMI Panel USP-104-B10: TFT, LCD, Touch HMI Panel |
| Size | 10.4″ (4:3) |
| Resolution | 800×600 (SVGA) |
| Viewing Area Height x Width (mm) | 211.2 x 158.4 |
| Colors | 65,536 (16bit) |
| Display Backlight Illumination | White LED |
| Environment | |
| Protection | IP66, IP65, NEMA4X when panel-mounted 3 |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
*Notes
- 1 wide I/O modules width = 1.5 slim I/O modules width – see table “Digital Uni-I/O™ Modules”
- Using a gateway model: GW-BAC1
- UniStream™ complies with IP66 and NEMA4X only with the audio seal installed, please refer to the installation guide of the HMI panel for information.
- EX-RC1: via CANbus integrate standard Unitronics’ I/O modules at distances of up to 1000m.
*This page provides a general overview of Unitronics products.
For more details, please check the complete technical specifications for each product, located at the end of the page.
Uni-I/O™ Modules
| Inputs | Outputs | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Expansion Modules article | Digital (Isolated) | HSC/Shaft-encoder 4 | Analog | Temperature Measurement | Weight Measurement | Transistor (Isolated) 5 | PWM/HSO 5 | Relay | Analog | Operating Voltage |
|
| Digital Modules (Isolated) | UID-1600 | 16 Sink/Source | None | None | None | None | None | None | None | None | 24VDC |
| UID-0808T | 8 Sink/Source | None | None | None | None | 8 Source(pnp) | None | None | None | 24VDC | |
| UID-W1616T 3 | 16 Sink/Source | None | None | None | None | 16 Source(pnp) | None | None | None | 24VDC | |
| UID-0808THS 1 | 8 Sink/Source | 2 250kHz 32-bit | None | None | None | 8 Source(pnp) | 2 2 250kHz 2 3kHz | None | None | 24VDC | |
| UID-0016T | None | None | None | None | None | 16 Source(pnp) | None | None | None | 24VDC | |
| UID-0808R | 8 Sink/Source | None | None | None | None | None | None | 8 | None | 24VDC | |
| UID-W1616R 3 | 16 Sink/Source | None | None | None | None | None | None | 16 | None | 24VDC | |
| UID-0016R | None | None | None | None | None | None | None | 16 | None | 24VDC | |
| Analog and Temperature | UIA-0006 | None | None | None | None | None | None | None | None | 6 0-10V 14-bit ±10V 13-bit+sign 0-20mA, 4-20mA 13-bit | 24VDC |
| UIA-0402N | None | None | 4 0-10V, 0-20mA, 4-20mA 13-bit | None | None | None | None | None | 2 0-10V 14-bit ±10V 13-bit+sign 0-20mA, 4-20mA 13-bit | 24VDC | |
| UIA-0800N | None | None | 8 0-10V, 0-20mA, 4-20mA 13-bit | None | None | None | None | None | None | Not relevant | |
| UIA-0800NH | None | None | 8 0-20V, 0-20mA, 4-20mA With HART communication | None | None | None | None | None | None | Not relevant | |
| UIS-04PTN | None | None | None | 4 PT100/NI100/NI120 | None | None | None | None | None | Not relevant | |
| UIS-04PTKN | None | None | None | 4 PT1000/NI1000/NI1200 | None | None | None | None | None | Not relevant | |
| UIS-08TC | None | None | None | 8 (Isolated) Thermocouple7 | None | None | None | None | None | 24VDC | |
| Digital/Analog Modules | UIS-WCB1 1 , 3 | 10 Sink/Source | 2 10kH z 32 bit | 2 (Isolated) 0-10V, 0-20mA, 4-20mA 14-bit | 2 (Isolated) Thermocouple, PT100/NI100/NI120 | None | 2 (Not Isolated) Sink (npn) | 2 250kHz | 8 | 2 0-10V 14-bit .±10V 13-bit+sign 0-20mA, 4-20mA 13-bit | 24VDC |
| UIS-WCB2 1 , 3 | 10 Sink/Source | 2 10kH z 32 bit | 2 (Isolated) 0-10V, 0-20mA, 4-20mA 14-bit | 2 (Isolated) Thermocouple, PT100/NI100/NI120 | None | 8 Source (pnp) 2 (Not Isolated) Sink (npn) | 2 250kHz (Sink outputs only) | None | 2 0-10V 14-bit .±10V 13-bit+sign 0-20mA, 4-20mA 13-bit | 24VDC | |
*Notes
- This module utilizes two high speed blocks that can each be assigned either to the inputs or to the outputs.
- 2 outputs are high speed, up to 250KHz , and may function as normal or high-speed PWM outputs (same frequency and different duty-cycles). 2 outputs are normal speed, and may function as normal-speed PWM outputs (same frequency but different duty-cycles).
- 1 wide I/O modules width = 1.5 slim I/O modules width
- Note that the high-speed inputs are included in the total number of digital inputs.
- Note that the high-speed outputs are included in the total number of digital outputs.
- Not isolated.
*This page provides a general overview of Unitronics products.
For more details, please check the complete technical specifications for each product, located at the end of the page.
Uni-Local Expansion Adapters
| Article | Description |
|---|---|
| UAG-XK125 | Short Range Kit, 125 cm |
| UAG-XKP125 | Short Range + embedded Power Supply Kit, 125 cm |
| UAG-XK300 | Short Range Kit, 300 cm |
| UAG-XKP300 | Short Range Kit + embedded Power Supply, 300 cm |
| UAG-XKPLXXXX | Long Range + embedded Power Supply, lengths: 600, 1200, 1500, 2000, 3000cm |
Uni-COM™ Communication Modules
| Article1 | Communication Ports |
|---|---|
| UAC-01RS2 | 1x RS232 port |
| UAC-02RS2 | 2x RS232 port |
| UAC-02RSC | 1x RS232 port and 1x RS485 port |
*Notes
- Add-on Modules, I/O and COM: the total number of modules, both I/O and COM that you can snap onboard an HMI panel is limited by the size of the panel.
UniStream Remote I/O
| Article | Description | ||||
|---|---|---|---|---|---|
| Adapter | URB-TCP | UniStream Remote IO Eth. Adapter | |||
| URB-TCP2 | UniStream Remote IO Adapter, 6 Modules | ||||
| Inputs | Inputs |
||||
| Digital | Analog | ||||
| URD-0800 | 8 Digital inputs (sink or source), 10RTB | 8 | – | ||
| URA-0400O | 4 Analog Current Inputs 12bit, 10RTB | – | 4 | ||
| URA-0800O | 8 Analog Current Inputs 12bit, 10RTB | – | 8 | ||
| URA-0400P | 4 Analog Voltage Inputs 12bit, 10RTB | – | 4 | ||
| URA-0800P | 8 Analog Voltage Inputs 12bit, 10RTB | – | 8 | ||
| URA-0400T | 4 Analog Current Inputs 16bit, 10RTB | – | 4 | ||
| URA-0400U | 4 Analog Voltage Inputs 16bit, 10RTB | – | 4 | ||
| Outputs | Outputs |
||||
| Transistor | Relay | Analog | |||
| URD-0004RH | 4 Relay Outputs, 10RTB | – | 4 | – | |
| URD-0008NH | 8 Digital Outputs (Sink), 10RTB | 8 (Sink) | – | – | |
| URD-0008CH | 8 Digital Outputs (Source), 10RTB | 8 (Source) | – | – | |
| URA-0004W | 4 Analog Current Outputs 12bit, 10RTB | – | – | 4 | |
| URA-0008W | 8 Analog Current Outputs 12bit, 10RTB | – | – | 8 | |
| URA-0004X | 4 Analog Voltage Outputs 12bit, 10RTB | – | – | 4 | |
| URA-0008X | 8 Analog Voltage Outputs 12bit, 10RTB | – | – | 8 | |
| URA-0004Y | 4 Analog Current Outputs 16bit, 10RTB | – | – | 4 | |
| URA-0004Z | 4 Analog Voltage Outputs 16bit, 10RTB | – | – | 4 | |
| Power | URP-PS24V | Input 24VDC, Output system Power 5VDC/1A | |||
DOCUMENT DOWNLOAD
INSTALLATION GUIDE
TECHNICAL SPECIFICATIONS
UNISTREAM REMOTE I\O- USER MANUAL
