Vision350™

MAXIMIZE YOUR RESULTS WITH TIME, LABOR & COST SAVINGS

For Small to Mid-Size Applications & Automation Projects

Vision 350™ Programmable Logic Controller

MAIN APPLICATIONS:

  • Dryers control
  • Trimmers control
  • Sorted machines control
  • Super critical CO2​
  • Close loop extraction
  • Hydrocarbon (Propane / Butane)
  • Ampoules Filling
  • Packaging Sorting control
  • Weight automation
  • Bagging automation

Vision™ - Rugged and Compact

Main Features:

Expandable up to 512 I/Os, LoadCell for weight measurement, Remote access & Web Server, Alarms via Email & SMS, variety of communication interfaces & protocols, Recipe management, Color HMI screens and more.

Vision 350™

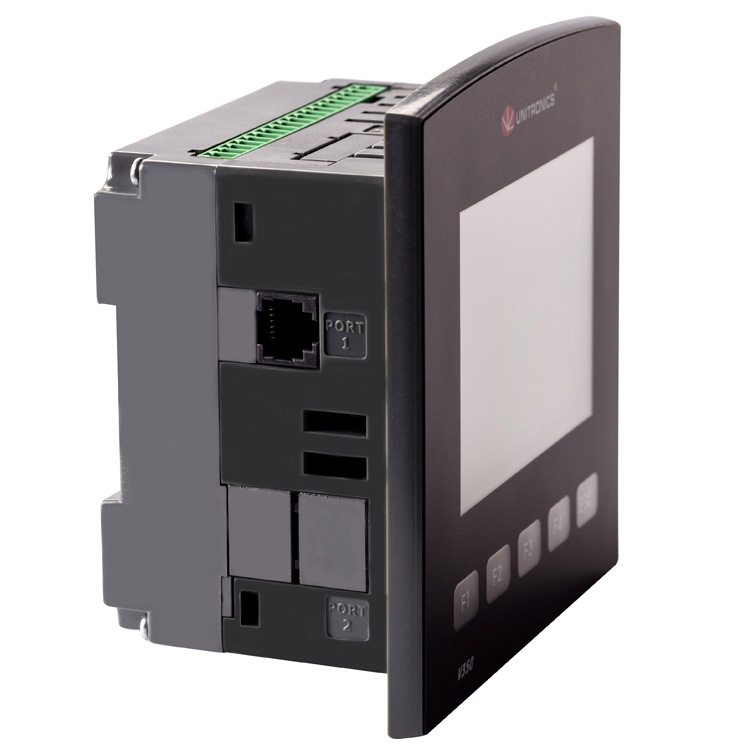

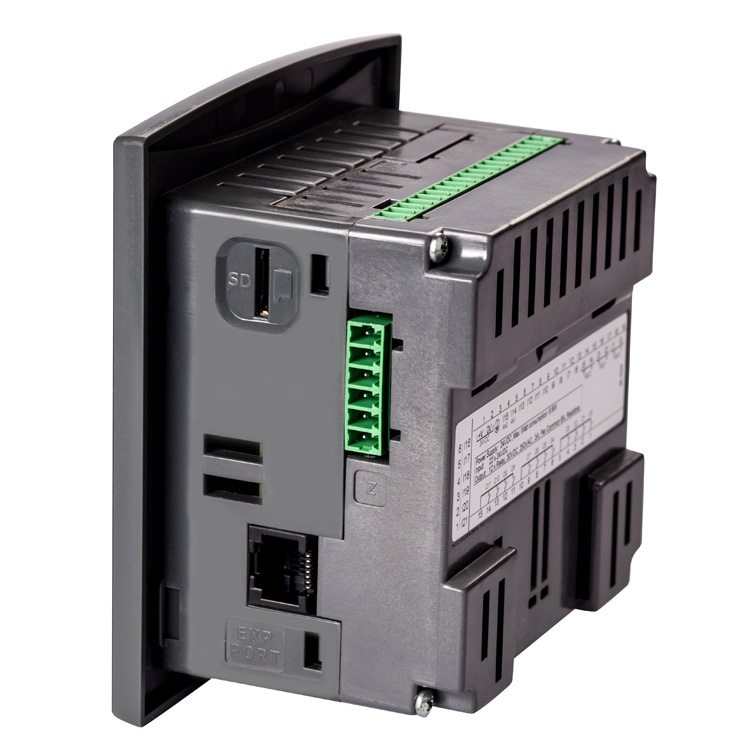

Palm-sized PLC with built-in  3.5″ color touchscreen.

Programmable logic controller with Built-in I/O configurations, expands up to 512 I/Os.

Previous
Next

Powerful Programmable Logic Controller + Incredible HMI Touchscreen Overview

  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via data tables
  • Micro SD card – log, backup, clone & more
  • Function Blocks
  • High quality touchscreen
  • Multi-language display
  • Built-in Alarm Screens
  • Mini USB for programming
  • RS485/RS232
  • 2 ports may be added: 1 Serial/Ethernet/Profibus and 1 CANbus
  • Protocols:
  • MODBUS TCP
  • SNMP V1
  • CANopen, CANlayer2, UniCAN
  • BACnet, KNX and M-Bus via gateway
  • FB Protocol: for any 3rd party protocol
  • General Features:
  • Web server, E-mail & SMS, Remote access utilities, 3G Modem support
  • Expand up to 512 I/Os
  • I/O options include digital, analog, high-speed, temperature & weight measurement

Visilogic™ Software for Vision350™

All-in-One programming environment. Simple, fast development for both Ladder and HMI applications.

  • Develop your PLC and HMI applications in one environment
  • Configure hardware & communications
  • Establish modem and data communications
  • Test and debug your programs
  • Software Utilities Suite: remote access and data management tools
INFO & DOWNLOAD
Product Details
Vision350™
I/O Expansion
Local or Remote I/Os may be added via expansion port or via CANbus. Expand up to 512 I/Os — see table below I/O Expansion Modules
Program
Application MemoryApplication Logic: 1MB • Images: 8MB • Fonts: 512K
Scan Time15µ sec per 1K of typical application
Memory Operands8192 coils, 4096 registers, 512 long integers (32 bit), 256 double words (32 bit unsigned), 64 memory floats, 384 timers, 32 counters. Additional non-retainable operands: 1024 X-bits, 512 X-integers, 256 X-long integers, 64 X-double words
Data Tables120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data
SD Card (Micro)Store data logs, Alarm History, Data Tables, Trend data, export to Excel • Back up Ladder, HMI & OS, clone PLCs
Enhanced FeaturesTrends: graph any value and display on HMI • String Library: instantly switch HMI language
Operator
Panel
Type & colorsTFT LCD • 65,536 colors, 16 bit resolution • Brightness- Adjustable via touchscreen or software
Display Resolution: 320 x 240 pixels (QVGA) • Size: 3.5”
TouchscreenResistive, Analog
Keys5 programmable keys. Labeling options— function keys, arrows or customized
General
Power Supply24VDC, except for V350-35-B1, which is 12/24VDC
Battery 7 years typical at 25°C, battery back-up for all memory sections and RTC
ClockReal-time clock functions (date and time)
Environment IP66/IP65/NEMA4X (when panel mounted)
StandardCE, UL  Many of our products are also  UL Class 1 Div 2 and  GOST certified  –  please contact Unitronics
  1.
Vision350™ models - Onboard I/Os
Inputs 1Outputs
Article SummaryDigital 2
HSC/Shaft-encoder 2Analog Temperature
Measurement 		Transistor 3 PWM/HSO 3 RelayAnalogOperating
Voltage
V350-J-B1
V350-35-B1		No onboard I/OsNoneNoneNoneNoneNoneNoneNoneNone12/24VDC
V350-J-TR20
V350-35-TR20		10 Digital, 2 D/A Inputs 1
6 Relay Outputs
2 High-speed Transistor Outputs
123
200kHz , 32-bit		2
0-10V, 0-20mA, 4-20mA
10-bit		None2
npn		2
(2 PTO)
200 kHz max		6None24VDC
V350-J-R34
V350-35-R34		20 Digital, 2 D/A Inputs 1
12 Relay Outputs
223
30kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
10-bit		NoneNoneNone12None24VDC
V350-J-TR34
V350-35-TR34		20 Digital, 2 D/A Inputs 1
8 Relay, 4 High-speed Transistor Outputs
223
200kHz , 32-bit		2
0-10V, 0-20mA, 4-20mA
10-bit		None4
npn		4
(3 PTO)
200 kHz max		8None24VDC
V350-J-TR6
V350-35-TR6		6 Digital, 2 D/A 1 ,
4 Analog Inputs
6 Relay Outputs
2 High-speed Transistor Outputs
81
200kHz, 32-bit		 2
0-10V, 0-20mA, 4-20mA and
4
0-20mA, 4-20mA
10-bit		None2
npn		2 (2 PTO)
200 kHz max		6None24VDC
V350-J-RA22
V350-35-RA22		8 Digital, 2 D/A, 2 TC/PT100/Digital 1 Inputs
8 Relay, 2 Analog Outputs
121
30kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
14-bit		2
Thermocouple, PT100		NoneNone82
0-10V, 4 -20mA
12-bit		24VDC
V350-J-TRA22
V350-35-TRA22		8 Digital, 2 D/A, 2 TC/PT100/Digital 1 Inputs
4 Relay, 2 Analog, 4 High-Speed Transistor Outputs
121
200kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
14-bit		2
Thermocouple, PT100		4
npn		4
(2 PTO)
200 kHz max		42
0-10V, 4 -20mA
12-bit		24VDC
V350-J-T2
V350-35-T2		10 Digital, 2 D/A Inputs 1
12 Transistor Outputs
123
30kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
10-bit		None12
pnp		7
0.5kHz		NoneNone24VDC
V350-J-T38
V350-35-T38		20 Digital, 2 D/A Inputs 1 ,
16 Transistor Outputs
222
30kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
10-bit		None16
pnp		7
0.5kHz		NoneNone24VDC
V350-J-TA24
V350-S-TA24
V350-35-TA24
V350-JS-TA24		8 Digital, 2 D/A, 2 TC/PT100/Digital 1 Inputs
10 Transistor, 2 Analog Outputs
121
30kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
14-bit
2
Thermocouple, PT100		10
pnp		5
0.5kHz		None2
0-10V, 4 -20mA
12-bit		24VDC
*Notes:
  1. In some models certain inputs are adaptable via wiring and software settings, and can function as digital, high-speed, analog, and in certain models as TC or PT100. Adapting requires input pins. This reduces the number of digital inputs. Pin requirements:
    • Each high-speed requires 1 or 2 pins according to high-speed mode.
    • Each analog input requires 1 pin.
    • Each TC requires 2 pins per TC input
    • The first PT input requires 3 pins, and two additional pins for each additional PT input. Example: V350-35-RA22 offers 12 digital inputs. Implementing 2 TC inputs requires 4 pins, leaving 8 pins free. Implementing 2 PT inputs uses 5 input pins.
  2. The total number of digital inputs listed includes high-speed and adaptable inputs.
  3. The total number of digital outputs listed includes high-speed outputs.

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

I/O Expansion Modules
InputsOutputs
Expansion ModulesDigital 5HSC 5AnalogTemperature
Measurement		Weight
Measurement		Transistor6 PWM/HSO 6RelayAnalogOperating
Voltage
Digital IO-DI8-TO88
pnp/npn		1
5kHz 16-bit		NoneNoneNone8
pnp 		NoneNoneNone24VDC 9
IO-DI8-RO48
pnp/npn		1
5kHz 16-bit		NoneNoneNoneNoneNone4None24VDC 9
IO-DI8-RO88
pnp/npn		1
5kHz 16-bit		NoneNoneNoneNoneNone8None24VDC 9
EX90-DI8-RO8 38
pnp		1
5kHz 16-bit		NoneNoneNoneNoneNone8None24VDC
IO-DI1616
pnp/npn		1
5kHz 16-bit		NoneNoneNoneNoneNoneNoneNone24VDC 9
IO-TO16NoneNoneNoneNoneNone16
pnp		NoneNoneNone24VDC
IO-RO8NoneNoneNoneNoneNoneNoneNone8None24VDC 9
IO-RO16NoneNoneNoneNoneNoneNoneNone16None24VDC 9
IO-DI8ACH8 ACNoneNoneNoneNoneNoneNoneNoneNone110/220 VAC
Analog, Temperature and
Weight/Strain Measurements		IO-AI4-AO2NoneNone4
0-10V, 0-20mA, 4-20mA
12-bit		NoneNoneNoneNoneNone2
±10V
12-bit+sign,
0-20mA, 4-20mA
12-bit		24VDC
IO-PT400NoneNoneNone4
PT100/NI100/NI120		NoneNoneNoneNoneNoneNot relevant
IO-PT4KNoneNoneNone4
PT1000/NI1000
NoneNoneNoneNoneNoneNot relevant
IO-AO6XNoneNoneNoneNoneNoneNoneNoneNone6 (Isolated)
0-10V, 0-20mA, 4-20mA
12-bit		24VDC
IO-LC1 1
pnp		NoneNoneNone1
Loadcell / Strain gauge
2
pnp		NoneNoneNone24VDC
IO-LC3 1
pnp		NoneNoneNone3
Loadcell / Strain gauge
2
pnp		NoneNoneNone24VDC
IO-ATC8NoneNone8
Thermocouple, 0-10V, 0-20mA, 4-20mA
14-bit		NoneNoneNoneNoneNoneNot relevant
IO-AI8NoneNone8
0-10V, 0-20mA, 4-20mA
14-bit		NoneNoneNoneNoneNoneNoneNot relevant
XL Digital/Analog IO-D16A3-RO1616
pnp/npn		2
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNoneNoneNone16None24VDC
IO-D16A3-TO16 16
pnp/npn		1
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNone15
pnp,
1
pnp/npn		1
pnp 0.5kHz
npn 50kHz		NoneNone24VDC
EX-D16A3-RO8716
pnp/npn		2
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNoneNoneNone8None24VDC
EX-D16A3-TO16716
pnp/npn		1
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNone15
pnp
1
pnp/npn		1
pnp 0.5kHz
npn 50kHz		NoneNone24VDC
High-speed Remote I/O ModuleEXF-RC15 2,4
,10		9
pnp/npn		3
200kHz 32-bit		NoneNoneNone4
npn		4
(up to 3 PTO)
2None24VDC
*Notes
  1. Number of supported I/Os & I/O modules varies according to module
  2. The EXF-RC15 functions as a node in a Vision UniCAN network and connects to the Vision controller via CANbus and programmed in VisiLogic. The EXF-RC15 cannot be extended as regular I/O unit.
  3. The EX90 is housed in an open casing. Only one EX90 can be connected per PLC, as a single expansion module; Expansion adapter not required.
  4. Supported by Vision series. Not supported by M91 series.
  5. The total number of digital inputs listed includes high-speed inputs.. Example: the IO-D16A3-TO16 offers a total of 16 pnp/npn inputs. You can configure I4 as a HSC and I5 as a Counter reset; this reduces the available number of digital inputs to 14.
  6. The total number of digital outputs listed includes high-speed outputs. Example: the IO-D16A3-TO16 offers a total of 16 transistor outputs. You can configure 1 to High-speed output, reducing the number of available digital outputs to 15.
  7. Functions as local adapter. Can support up to 7 I/O modules
  8. 16-bit or 32-bit, depending on the PLC
  9. Also available as 12VDC – contact us for part number

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

DOCUMENT DOWNLOAD

INSTALLATION GUIDE

File Name

V350-35-B1/V350-J-B1

V350-35-TR20/ V350-J-TR20

V350-35-R34/ V350-J-R34

V350-35-TR6/ V350-J-TR6

V350-35-RA22/ V350-J-RA22

V350-35-TRA22/ V350-J-TRA22

V350-35-T2/ V350-J-T2

V350-35-T38/ V350-J-T38

V350-35-TA24/ V350-J-TA24

V350-35-TU24/ V350-J-TU24

Download

Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
TECHNICAL SPECIFICATIONS

File Name

V350-35-B1/V350-J-B1

V350-35-TR20/ V350-J-TR20

V350-35-R34/ V350-J-R34

V350-TR34/ V350-J-TR34

V350-35-TR6/ V350-J-TR6

V350-35-RA22/ V350-J-RA22

V350-35-TRA22/ V350-J-TRA22

V350-35-T2/ V350-J-T2

V350-35-T38/ V350-J-T38

V350-35-TA24/ V350-J-TA24

V350-35-TU24/ V350-J-TU24

Download

Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
2D DRAWINGS

File Name

V350

V350-J

Download

Download
Download
3D DRAWINGS

File Name

3D Drawings

Download

Download
