UniStream Built-in 10.1″

BEST-IN-CLASS AUTOMATION FOR CANNABIS PRODUCTION

Improving productivity with advanced control solutions

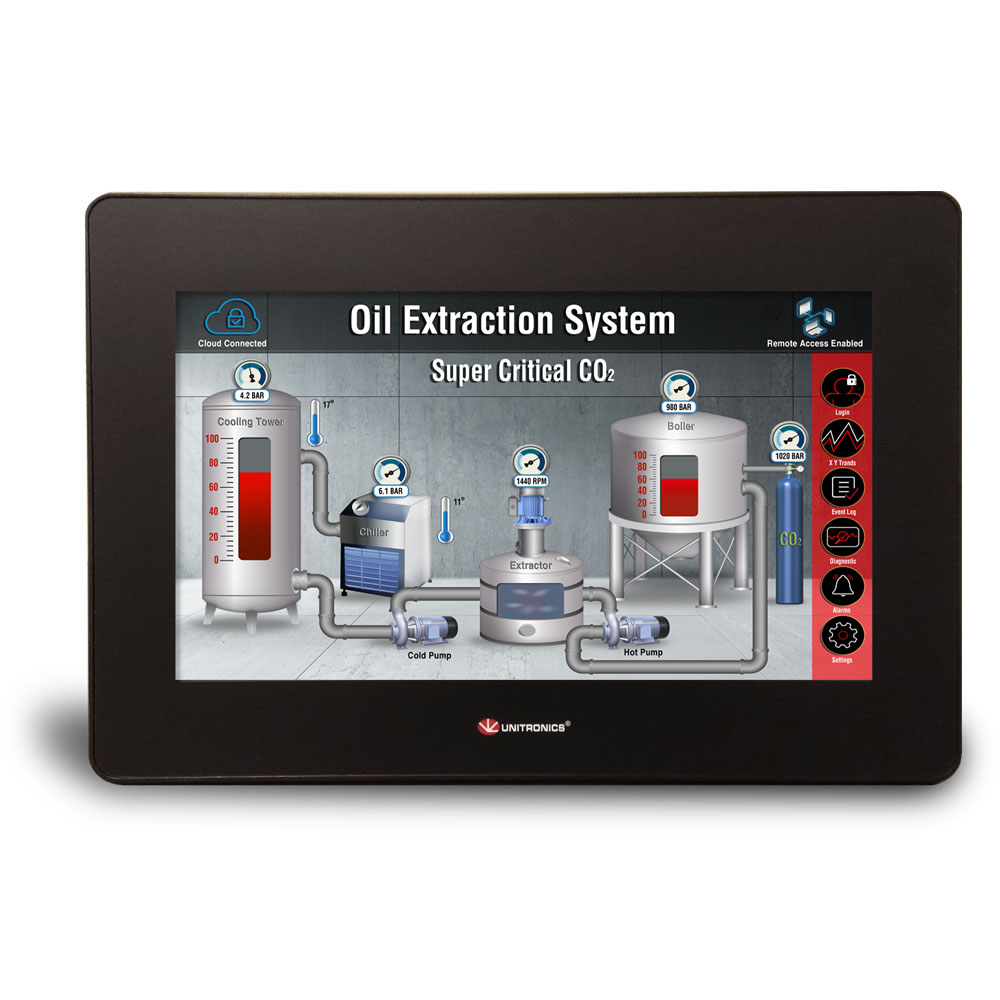

UniStream® 10.1" Built-in: PLC Controller + HMI + I/Os

MAIN APPLICATIONS:

  • Grow control
  • Environmental control
  • HVAC control
  • Temperature control
  • Humidity control
  • Light system control
  • Odor control
  • Water Irrigation control
  • PH & Nutrition Irrigation control
  • Super critical CO2
  • Close loop extraction
  • Hydrocarbon (Propane / Butane)
  • Ampoules Filling
  • Packaging Sorting control
  • Weight automation
  • Bagging automation

Powerful Award-winning Programmable Logic Controller

Main Features:

Expand up to 2048 I/Os, Remote access & Web Server, Alarms via Email & SMS, Video & Camera integration, Ethernet/IP , MQTT for Cloud communication, variety of communication interfaces & protocols, Trends & data logging, Recipe management, FTP, and more.

UniStream® 7" Built-in: PLC+HMI+I/O

Multi-function PLC  with an integrated, high quality HMI touch screen, available in a range of built-in I/O configurations. The highly compact hardware profile, PLC+HMI+I/Os built into a one unit, offers powerful control capabilities in an incredible space-saving configuration.

UniStream 10.1″ main features include Ethernet/IP, VNC, FTP, Web Server, Video + RTSP, SQL Client and more. It is backed by the most efficient programming software you have ever used.

Available in UniStream 10.1″ Cloud series – a PLC with built-in, no-cost cloud services. You simply connect the PLC to ‘UniCloud’, Unitroncis cloud service, design a no-code dashboard, and go live in less than 30 minutes!

Previous
Next

HIGH-IMPACT BENEFITS FOR CANNABIS PRODUCERS

  • Auto-tune PID, up to 64 independent loops
  • Recipes & data logging via data tables & sampling
  • MicroSD card – log, backup, clone & more
  • Function Blocks & Structs
  • Trends
  • High quality touchscreen
  • Multi-language display
  • Built-in Alarm Screens
  • Media support: Video*, Audio* and PDF viewer
  • Multi-level password protection –easy and fast

* For 10.1″ Pro only

  • Ethernet TCP/IP
  • USB host
  • Mini USB for programming
  • CANbus
  • RS485
  • RS232
  • Add-on ports: CANbus, RS485, RS232
  • Protocols:
  • MQTT Client
  • EtherNet/IP
  • MODBUS TCP
  • CANopen, CANlayer2, UniCAN
  • SNMP
  • BACnet, KNX and M-Bus via gateway
  • Message Composer for 3rd party protocols

General Features: SQL Client*, Web Server*, E-mail & SMS, Remote access via VNC, FTP server & client, 3G Modem support

  * For 7″ Pro only

  • Expand up to 2048 I/Os
  • Expand remotely: via UniStream Remote I/O
  • I/O options include digital, analog, high-speed and temperature

UniLogic®- UniStream Built-in Programming Software

Eliminates the complicated operations associated with automation. Ultimate All-in-One programming environment for: PLC, HMI, I/O and VFDs. Easy to use - one environment – major time saver.

  • Powerful single programming environment
  • Easy to use, intuitive, and fast
  • Code Ladder
  • Design HMI screens and Web pages
  • Configure hardware
  • Set up and implement communications
  • Build-it-once, create & reuse Ladder functions, screens, webpages and more
  • Configure & Operate VFDs
INFO & DOWNLOAD
Product Details
UniStream® 10.1″
I/O Options
Number of I/Os (Built-in, local and remote)Up to 2,048 I/O points
Built-in I/O or Uni-COM ModulesAccording to model and add-on model (see table below)
Local Uni-I/O™ ModulesTo add local I/Os, use UAG-CX I/O Expansion Adapters. These adapters provide the connection point for standard UniStream Uni-I/O™ modules
Remote I/O ExpansionUse EX-RC1 adapters to further extend the number of I/Os 1
Bit Operation 0.13 µs
Ladder Memory1 MB
External MemorymicroSD and USB Flash drive (up to 32GB)
Data speed: up to 200mbs
VideoShow MPEG-4 videos on the HMI screen3
AudioStereo MP3 filesscreen3
Power Supply24VCD (B1 support 12V/24VDC)
Backup BatteryCR2032, Back-up RTC values, system data and retained tags
Communication
Ports1 Ethernet •1 USB host • 1 USB device for programming
Protocols MODBUS, EtherNet/ IPTM, CANopen, SNMP, FTP, BACnet2, RTSP, VNC, UniCAN, GSM (SMS, GPRS), KNX2, Message Composer for 3rd party protocols.
SQL Client & Web Serverscreen3
HMI Panel
TypeTFT, LCD, Touch HMI Panel
Size10.1” (16:9)
Resolution1024×600 (WSVGA)
Viewing Area
Height x Width (mm)		Width x Height (mm) 222.72 x 125.28
Colors65,536 (16bit)
Display Backlight IlluminationWhite LED
Environment
ProtectionFront face : IP65/66, NEMA 4X
Rear side: IP20, NEMA1
Operating Temperature-20°C to 55°C (-4°F to 131°F)
*Notes
  1. EX-RC1: via CANbus integrate standard Unitronics’ I/O modules at distances of up to 1000m.
  2. Using a gateway model
  3. For UniStream 7″ Pro only
UniStream 10.1" Built-in I/O Configuration
Inputs 1Outputs
Article SummaryDigital
(Isolated)
HSC/Shaft-encoder *1
AnalogTemperature
inputs, RTD/TC
Transistor *2
(Isolated)
PWM *2
RelayAnalogOperating
Voltage
US10-B5-B1
US10-B10-B1		No built-in I/OsNoneNoneNoneNoneNoneNoneNoneNone12/24VDC
US10-B5-TR22
US10-B10-TR22		10 Digital,
2 Analog Inputs,
2 Transistor outputs, npn, including 2 PWM outputs.
8 Relay outputs		10
Sink/Source		None2
0-10V, 0-20mA,
4-20mA
12-bit		None2
Sink (npn)		2
30kHz		8
None24VDC
US10-B5-T24
US10-B10-T24		10 Digital,
2 Analog Inputs, 12 Transistor outputs, pnp, including 2 PWM outputs.		10
Sink/Source		None2
0-10V, 0-20mA,
4-20mA
12-bit		None12
Source (pnp)		2
3kHz		NoneNone24VDC
US10-B5-RA28
US10-B10-RA28		14 Digital,
including 2 HSC,
2 Analog Inputs,
2 Temperature inputs,
8 Relay outputs,
2 Analog outputs
14
Sink/Source


2
90kHz 32-bit



2 (isolated)
0-10V, 0-20mA, 4-20mA
10-bit		2 (isolated)
Thermocouple,
PT100/NI100/NI120/
PT1000/NI1000		NoneNone82
0-10V,12-bit, ±10V
11-bit+sign
0-20mA, 4-20mA
12-bit		24VDC
US10-B5-TA30
US10-B10-TA30		14 Digital inputs, including 2 HSC,
2 Analog inputs,
2 Temperature inputs,
10 Transistor outputs, pnp, including 2 PWM outputs,
2 Analog outputs		14
Sink/Source		2
90kHz 32-bit		2 (isolated)
0-10V, 0-20mA, 4-20mA
10-bit		2 (isolated)
Thermocouple,
PT100/NI100/NI120/
PT1000/NI1000		10
Source (pnp)		2
3kHz		None2
0-10V,12-bit, ±10V
11-bit+sign
0-20mA, 4-20mA
12-bit		24VDC
US10-B5-R38
US10-B10-R38		24 Digital inputs, including 4 HSC,
12 relay outputs		24
Sink/Source		4
90kHz 32-bit		2
0-10V, 0-20mA,
4-20mA
12-bit		NoneNoneNone12None24VDC
US10-B5-T42
US10-B10-T42		24 Digital inputs, including 4 HSC,
2 Analog inputs,
16 Transistor outputs, pnp, including 2 PWM outputs		24
Sink/Source		4
90kHz 32-bit		2
0-10V, 0-20mA,
4-20mA
12-bit		None16
Source (pnp)		2
3kHz		NoneNone24VDC
*Notes:
  1. Note that the high-speed inputs are included in the total number of digital inputs.
  2. Note that the PWM outputs are included in the total number of transistor outputs.
Uni-I/O™ Modules
InputsOutputs
Expansion Modules
article 		Digital (Isolated) HSC/Shaft-encoder 4AnalogTemperature
Measurement		Weight
Measurement		Transistor (Isolated) 5PWM/HSO 5RelayAnalogOperating
Voltage
Digital Modules
(Isolated)		UID-160016
Sink/Source		NoneNoneNoneNoneNoneNoneNoneNone24VDC
UID-0808T8
Sink/Source		NoneNoneNoneNone8
Source(pnp)		NoneNoneNone24VDC
UID-W1616T 316
Sink/Source		NoneNoneNoneNone16
Source(pnp)		NoneNoneNone24VDC
UID-0808THS 18
Sink/Source		2
250kHz 32-bit		NoneNoneNone8
Source(pnp)		2 2
250kHz
2
3kHz		NoneNone24VDC
UID-0016TNoneNoneNoneNoneNone16
Source(pnp)		NoneNoneNone24VDC
UID-0808R8
Sink/Source		NoneNoneNoneNoneNoneNone8None24VDC
UID-W1616R 316
Sink/Source		NoneNoneNoneNoneNoneNone16None24VDC
UID-0016RNoneNoneNoneNoneNoneNoneNone16None24VDC
Analog and Temperature UIA-0006NoneNoneNoneNoneNoneNoneNoneNone6
0-10V
14-bit
±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
UIA-0402NNoneNone4
0-10V, 0-20mA, 4-20mA
13-bit
NoneNoneNoneNoneNone2
0-10V
14-bit
±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
UIA-0800NNoneNone8
0-10V, 0-20mA, 4-20mA
13-bit
NoneNoneNoneNoneNoneNoneNot relevant
UIA-0800NHNoneNone8
0-20V, 0-20mA, 4-20mA
With HART communication
NoneNoneNoneNoneNoneNoneNot relevant
UIS-04PTNNoneNoneNone4
PT100/NI100/NI120
NoneNoneNoneNoneNoneNot relevant
UIS-04PTKNNoneNoneNone4
PT1000/NI1000/NI1200
NoneNoneNoneNoneNoneNot relevant
UIS-08TCNoneNoneNone8 (Isolated)
Thermocouple7		NoneNoneNoneNoneNone24VDC
Digital/Analog ModulesUIS-WCB1 1 , 3 10
Sink/Source		2
10kH z 32 bit		2 (Isolated)
0-10V, 0-20mA, 4-20mA
14-bit		2 (Isolated)
Thermocouple, PT100/NI100/NI120
None2 (Not Isolated)
Sink (npn)		2
250kHz		82
0-10V
14-bit
.±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
UIS-WCB2 1 , 3 10
Sink/Source		2
10kH z 32 bit		2 (Isolated)
0-10V, 0-20mA, 4-20mA
14-bit		2 (Isolated)
Thermocouple, PT100/NI100/NI120
None8
Source (pnp)
2 (Not Isolated)
Sink (npn)		2
250kHz
(Sink outputs only)		None2
0-10V
14-bit
.±10V
13-bit+sign
0-20mA, 4-20mA
13-bit		24VDC
*Notes
  1. This module utilizes two high speed blocks that can each be assigned either to the inputs or to the outputs.
  2. 2 outputs are high speed, up to 250KHz , and may function as normal or high-speed PWM outputs (same frequency and different duty-cycles). 2 outputs are normal speed, and may function as normal-speed PWM outputs (same frequency but different duty-cycles).
  3. 1 wide I/O modules width = 1.5 slim I/O modules width
  4. Note that the high-speed inputs are included in the total number of digital inputs.
  5. Note that the high-speed outputs are included in the total number of digital outputs.
UniStream Remote I/O
ArticleDescriptionConnector Type
Adapter
URB-TCPUniStream Remote IO Ethernet Adapter
URB-TCP2UniStream Remote IO Adapter, 6 Modules
URB-EC1Unistream EtherCAT Remote IO adaptor 16 Modules
Digital Inputs
URD-08008 Digital Inputs (Sink / Source), 24VDC10 RTB
URD-1600-816 Digital Inputs (Sink / Source), 24VDC18 RTB
URD-3200-432 Digital Inputs (Sink / Source), 24VDC40 PIN IDC
URD-0400B4 Digital Inputs, 120VAC10 RTB
URD-0400C4 Digital Inputs, 240VAC10 RTB
Encoder / High Speed Counters
URD-0200E2 High Speed Counters / Encoder Inputs, 24VDC10 RTB
URD-0200D2 High Speed Counters / Encoder Inputs, 5VDC10 RTB
Digital Outputs
URD-0008CH8 Digital Outputs (Source), 24VDC/0.5A10 RTB
URD-0008CI8 Digital Outputs, (Source), 24VDC/2A10 RTB
URD-0016CG-816 Digital Outputs, (Source), 24VDC/0.3A18 RTB
URD-0032CG-432 Digital Outputs, (Source), 24VDC/0.3A40 PIN IDC
URD-0008NH8 Digital Outputs (Sink), 24VDC/0.5A10 RTB
URD-0008NI8 Digital Outputs, (Sink), 24VDC/2A10 RTB
URD-0016NG-816 Digital Outputs, (Sink), 24VDC/0.3A18 RTB
URD-0032NG-432 Digital Outputs, (Sink), 24VDC/0.3A40 PIN IDC
Relay
URD-0004RH4 Relay, 2A10 RTB
URD-0004SK4 Solid State Relay, 240VAC/DC, 0.5A10 RTB
URD-0004SM4 Solid State Relay, 110VAC/DC, 1A10 RTB
URD-0004SN4 Solid State Relay, 24VAC/DC, 2A10 RTB
Analog Inputs 12 bit
URA-0400O4 Analog Current Inputs 12bit10 RTB
URA-0800O8 Analog Current Inputs 12bit10 RTB
URA-1600O-816 Analog Current Inputs 12bit18 RTB
URA-0400P4 Analog Voltage Inputs 12bit10 RTB
URA-0800P8 Analog Voltage Inputs 12bit10 RTB
URA-1600P-816 Analog Voltage Inputs 12bit18 RTB
Analog Inputs 16 bit
URA-0400T4 Analog Current Inputs 16bit10 RTB
URA-0800T 8 Analog Current Inputs 16bit 10 RTB
URA-1600T-816 Analog Current Inputs 16bit18 RTB
URA-0400U4 Analog Voltage Inputs 16bit10 RTB
URA-0800U 8 Analog Voltage Inputs 16bit 10 RTB
URA-1600U-816 Analog Voltage Inputs 16bit18 RTB
Analog Outputs 12 bit
URA-0004W4 Analog Current Outputs 12bit10 RTB
URA-0008W8 Analog Current Outputs 12bit10 RTB
URA-0004X4 Analog Voltage Outputs 12bit10 RTB
URA-0008X8 Analog Voltage Outputs 12bit10 RTB
URA-0016X-816 Analog Voltage Outputs 12bit18 RTB
Analog Outputs 16 bit
URA-0004Y4 Analog Current Outputs 16bit10 RTB
URA-0008Y 8 Analog Current Outputs 16bit 10 RTB
URA-0004Z4 Analog Voltage Outputs 16bit10 RTB
URA-0016Z-816 Analog Voltage Outputs 16bit18 RTB
Temperature
URS-04RT4 RTD / Resistance 10 RTB
URS-04TC4 Thermocouple / mV 10 RTB
URS-08RT-28 RTD / Resistance 20 PIN IDC
URS-08TC-28 Thermocouple / mV 20 PIN IDC
Power
URP-PS24VAdapter Additional System Power Expension, 1A10 RTB
URP-C0V0V8 0VDC Potential Distribution10 RTB
URP-C24V24V8 24VDC Potential Distribution10 RTB
URP-C0V24V4 24VDC, 4 0VDC Potential Distribution10 RTB
URP-PDISTExternal Universal Power Distribution10 RTB
URP-SHIELDExternal Universal Shield Distribution10 RTB
Spare Parts
URB-ENDAdapter End ModuleNone
URO-010510 Removable Terminal Block For I/O10 RTB
URO-010618 Removable Terminal Block For I/O18 RTB
URO-010110 Removable Terminal Block For Potential Distribution10 RTB
URO-010210 Removable Terminal Block For External Power10 RTB
*Notes
  1. Note that the high-speed inputs are included in the total number of digital inputs.
  2. Note that the PWM outputs are included in the total number of transistor outputs.
Uni-COM™ Modules
ArticleCommunication Ports
UAC-CX-01RS2
Uni-COM: 1x RS232 port
UAC-CX-01RS4 Uni-COM: 1x RS485 port
UAC-CX-01CAN Uni-COM: 1x CANbus port
*Notes
    1. All Uni-COM Modules- up to 2 serial modules and 1 CANbus module. Basic (B3) version support 1 serial module.
  2. Note that the PWM outputs are included in the total number of transistor outputs.
Uni-Local Expansion Adapters
ArticleDescription
UAG-CX-XK125Short Range Kit, 125 cm
UAG-CX-XKP300Short Range Kit + embedded Power Supply, 300 cm
UAG-CX-XKPLXXXX UniStream CX IO Exp.Long Kit, lengths: 600, 1200, 1500, 2000, 3000 cm
*Notes
    1. All Uni-COM Modules- up to 2 serial modules and 1 CANbus module. Basic (B3) version support 1 serial module.
  2. Note that the PWM outputs are included in the total number of transistor outputs.

DOCUMENT DOWNLOAD

INSTALLATION GUIDE

File Name

US10-x5-B1

US10-x10-B1

US10-x5-TR22

US10-x10-TR22

US10-x5-T24

US10-x10-T24

US10-x5-R38

US10-x10-R38

US10-x5-T42

US10-x10-T42

US10-x5-RA28

US10-x10-RA28

US10-x5-TA30

US10-x10-TA30

Uni-COM™ CX Modules

Local Expansion Adapters

Download

Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
TECHNICAL SPECIFICATIONS

File Name

US10-x5-B1

US10-x10-B1

US10-x5-TR22

US10-x10-TR22

US10-x5-T24

US10-x10-T24

US10-x5-R38

US10-x10-R38

US10-x5-T42

US10-x10-T42

US10-x5-RA28

US10-x10-RA28

US10-x5-TA30

US10-x10-TA30

Uni-COM™ CX Modules

Local Expansion Adapters

Download

Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
Download
UNISTREAM REMOTE I\O- USER MANUAL

File Name

UniStream Remote I/O- User Manual

Download

Download
2D DRAWINGS

File Name

UniStream 10.1" Built-in - 2D

Download

Download
3D DRAWINGS

File Name

UniStream 10.1" Built-in - 3D

Download

Download
Ubermorgen Innovations Gmbh:
“For me, most important is that I forgot that it is there - and it does its job, a very important job, controlling steam production for our factory.”
Coating Systems:
“We have found Unitronics to be one of those companies which inspire you to push the boundaries, we are reinventing a control system that has been around for many years on different platforms but with Unitronics we actively look to see how we can improve the product using the available technology but without it adding additional cost for our customers.”
Mar Cor Purification:
“The development process went a lot smoother due to the operator interface and PLC as one, and being programmed as one simultaneously…There are no annoying hurdles to jump, no additional communications software, communications hardware, or support costs. There is no burdensome software over protection getting in the way—just layout a design and build away!"
Timbersoft:
“The most cost effective and reliable way to fill the entry level PLC/HMI/SCADA bracket in the market.”
Aqua Interma Engineering:
“Among all automation the devices I work with, Unitronics is my favorite.”
AquaRD:
“With a friendly development environment and unrivaled quality to price ratio, Unitronics PLC’s are the perfect solution – we highly recommend them!”
Imapsa Automation:
"With fast delivery times, and constantly updated software, Unitronics has always listened to our customers many requests, and have implemented them since we decided to start our automation division in 2001. Great support via both the technical support team and the Unitronics forum. And, of course, great price!"
Greenmove Technologies:
“The Unistream offers the right balance between functionality and simplicity and is therefore an ideal fit for our application. With the Unistream we succeed in running our ‘mini-factories’ at the locations of our customers.”
Previous slide
Next slide
