Samba 4.3™

MAXIMIZE YOUR RESULTS WITH TIME, LABOR & COST SAVINGS

For Small Machines & Automation Projects

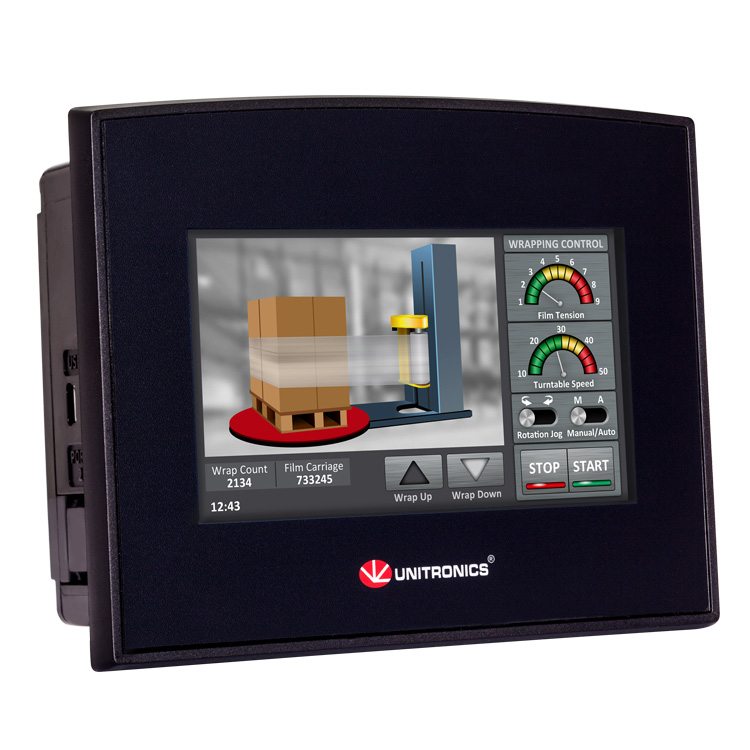

Samba 4.3™ Programmable Logic Controller

MAIN APPLICATIONS:

  • Dryers control
  • Trimmers control
  • Sorted machines control
  • Super critical CO2
  • Hydrocarbon (Propane / Butane)
  • Ampoules Filling
  • Packaging Sorting control
  • Weight automation
  • Bagging automation

For Simple machines

Main Features:

Remote access, Alarms via Email & SMS, variety of communication interfaces & protocols, Recipe management, trends & data logging, Color HMI screens and more..

A perfect fit for any small machine or simple project

Full-function programmable logic controller with built-in high resolution, full-color touchscreen & built-in I/O configurations. Great look, incredible price.

Previous
Next

Programmable Logic Controller With Integrated HMI Touchscreen Overview

  • Auto-tune PID, 2 independent loops
  • Recipe programs and data logging via data tables
  • Function Blocks
  • High quality touchscreen
  • Multi-language display
  • Built-in Alarm Screens
  • Mini USB for programming for 4.3″ & 7″models, 1 RS232 for 3.5″ model
  • 2 ports may be added: 1 Serial/Ethernet and CANbus
  • Protocols:
  • MODBUS TCP
  • SNMP V1
  • CANopen, CANlayer2, UniCAN
  • BACnet, KNX and M-Bus via gateway
  • FB Protocol: for any 3rd party protocol
  • General Features:
  • Web server, E-mail & SMS, Remote access utilities, 3G Modem support
  • I/O options include digital, analog, high-speed

Visilogic™ Software for Samba 4.3™

All-in-One programming environment. Simple, fast development for both Ladder and HMI applications.

  • Develop your PLC and HMI applications in one environment
  • Configure hardware & communications
  • Establish modem and data communications
  • Test and debug your programs
  • Software Utilities Suite: remote access and data management tools
INFO & DOWNLOAD
Product Details
Samba 4.3™
Program
Application MemoryApplication Logic – 176kb, Images: 2MB, Fonts: 512 k
Scan Time15µ sec per 1K of typical application
Memory Operands512 coils, 256 registers, 32 long integers (32-bit), 32 double words (32-bit unsigned), 24 floats, 32 timers (32-bit), 16 counters
Additional non-retainable operands: 64 X-bits, 32 X-integers, 16 X-long integers, 16 X-double words
Data Tables32K dynamic RAM data (recipe parameters, datalogs, etc.), up to 16K fixed data
SD Card (Micro)None
Enhanced FeaturesTrends: graph any value and display on HMI • String Library: instantly switch HMI language
Operator
Panel
Type & colorsTFT LCD, 65,536 colors, 16 bit resolution, Brightness – Adjustable via touchscreen or software
Display Resolution: 480 x 272 pixels • Size: 4.3”
TouchscreenResistive, Analog
KeysDisplays virtual keyboard when the application requires data entry.
General
Power Supply24VDC
Battery 7 years typical at 25°C, battery back-up for all memory sections and RTC
ClockReal-time clock functions (date and time)
Environment IP66/IP65/NEMA4X (when panel mounted)
StandardCE, UL  Many of our products are also  UL Class 1 Div 2 and  GOST certified  –  please contact Unitronics
  1.
Samba™ Models - Onboard I/O
Inputs1Outputs
Article SummaryDigital2
HSC/Shaft-encoder2Analog Temperature
Measurement 		Transistor 3 PWM/HSO 3RelayAnalogOperating
Voltage
SM43-J-R20

10 Digital, 2 D/A Inputs4 ,
8 Relay Outputs
121
30kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
10-bit		NoneNoneNone8None24VDC
SM43-J-T20

10 Digital, 2 D/A Inputs,
8 Transistor Outputs
123
30kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
10-bit		None8
pnp		7
0.5kHz		NoneNone24VDC
SM43-J-RA2212 Digital, 1 HSC/Shaft-encoder,
2 AI , 2 PT100/TC,
8 Relay, 2 AO		121
30kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
12/14-bit		2
PT100/TC		NoneNone82
0-10V, 4-20mA, 12-bit		24VDC
SM43-J-TA2212 Digital, 1 HSC/Shaft-encoder,
2 AI, 2 PT100/TC,
8 Transistor, 2 AO		121
30kHz, 32-bit		2
0-10V, 0-20mA, 4-20mA
12/14-bit		2
PT100/TC		8
pnp		5
0.5kHz		None2
0-10V, 4-20mA, 12-bit		24VDC
*Notes:
  1. In some models certain inputs are adaptable via wiring and software settings, and can function as digital or analog.
    Adapting requires input pins. This reduces the number of digital inputs. Pin requirements:
    • Each analog input requires 1 pin.
    Example: SM35-J-R20 offers 12 digital inputs. Implementing 2 analog inputs requires 2 pins, leaving 10 pins free.
  2. The total number of digital inputs listed includes high-speed and adaptable inputs.
  3. The total number of digital outputs listed includes high-speed outputs.
  4. When selecting NPN for the digital inputs, the 2 Analog inputs cannot be used.
